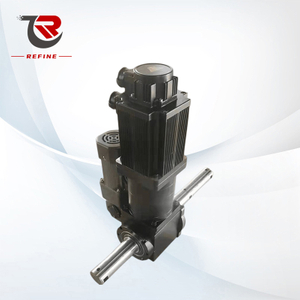

BW50R
REFINE
8459490000
Our company combined with the actual needs of on-site processing, continuous improvement in equipment structure, through continuous improvement and improvement, the newly developed BW50R boring and welding machine is the best engineering maintenance equipment, equipment operation only needs one person to complete, equipment from the design concept to processing are on-site starting point, the actual operation difficulty of workers is greatly reduced, Make maintenance personnel more handy.
NO | ITEMS | UNIT | BW50R |
1 | Power unit | kw | Servo Motor 3 |
2 | Output speed of main motor | r/min | 0~300 |
3 | Motor speed regulation | Stepless | |
4 | Feed Way | H-Matic | |
5 | mm | φ55-φ260 | |
6 | Boring stroke | mm | 200 |
7 | Maximum cutting capacity on one side | mm | 2 |
8 | Machining roundness | mm | 0.03 |
9 | Roughness | um | 3.2 |
10 | Installation way | Welding fixed | |
11 | Welding Hole Range | mm | 55-230mm |
12 | Thickness of single side weld | mm | 2-3 |
13 | Welding stick Type | 1.0 | |
14 | Voltage and frequency | -- | 220V, 50HZ, 3 PHASE |
15 | Boring Bar Diameter | mm | 50 |
16 | Boring Bar Length | mm | 1500 |
