TPX6111B/3
REFINE
8459310000

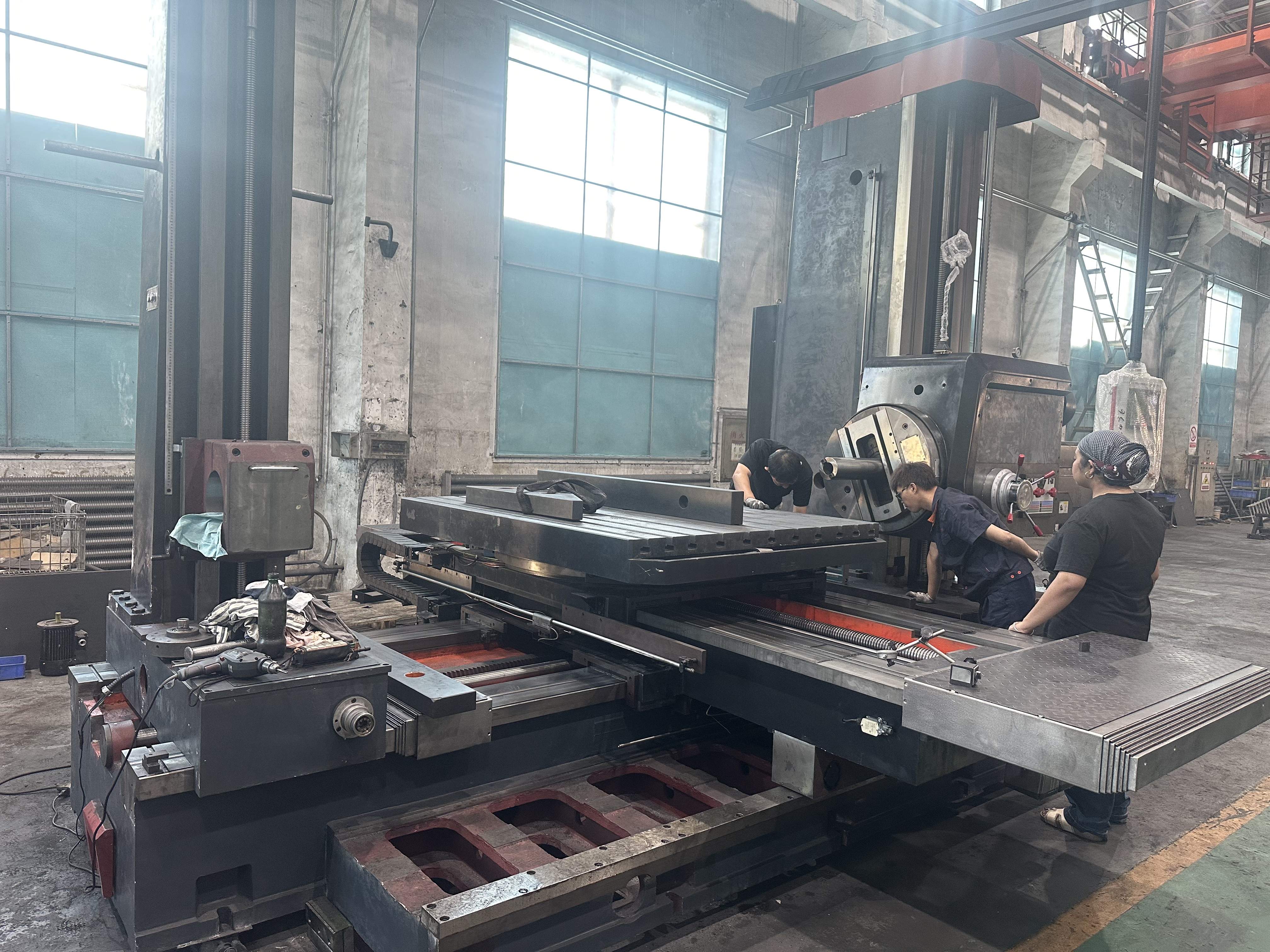

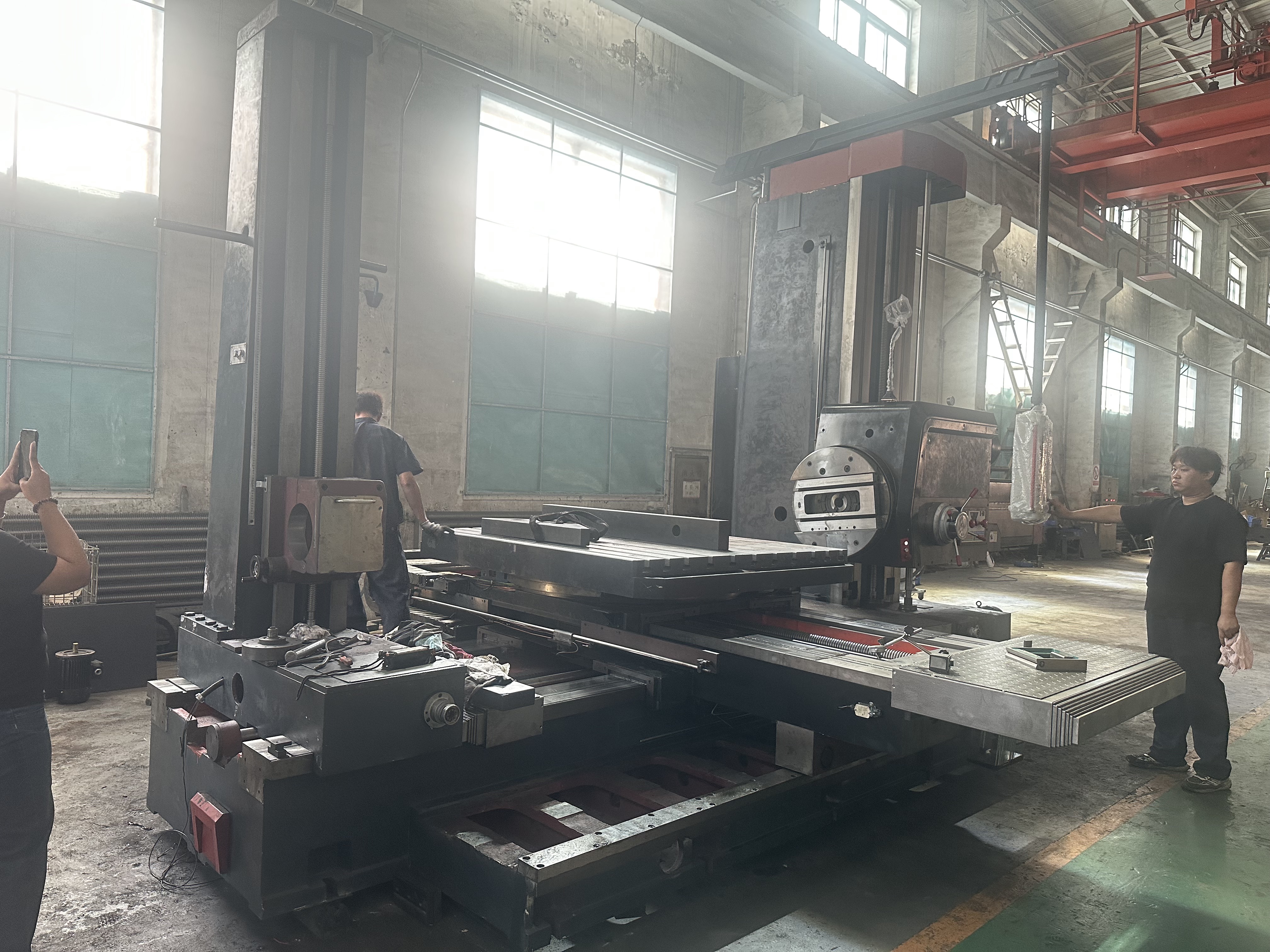

This series the machine has the following advantages:
1) The main motion system of the machine is driven by a 7.5kw single-speed AC motor, which operates four variable speed cylinders via a hydraulic pre-selected rotary valve and pushes four sets of sliding gears to achieve 22 levels of spindle speed in the 8-1000r/min range.
2) The machine is equipped with a suspension button station, centralized operation, flexible and convenient; The speed of the main moving spindle and the feed of each shaft are changed by hydraulic preselection, light, fast, accurate, easy to operate, save auxiliary time.
3) Headstock lifting, table vertical and horizontal and rotary motion distribution are controlled by electromagnetic clutch, its clamping, loosening using hydraulic control, clamping with mechanical self-locking, clamping reliable, reduce the labor intensity of the operator at the same time, improve the degree of automation of machine tools.
Product Parameters
UNIT | TPX6111B | TPX6111B/2 | TPX6111B/3 | TPX6113 | TPX6113/2 | |
SPINDLE | ||||||
Spindle diameter | Mm | Φ110 | Φ110 | Φ110 | Φ130 | Φ130 |
Spindle taper | - | Morse No.6 | Morse No.6 | Morse No.6 | Metric 80 | Metric 80 |
Max spindle torque | N.m | 1225 | 1225 | 1225 | 3136 | 3136 |
Max. axial force of spindle | N | 12250 | 12250 | 12250 | 31360 | 31360 |
Spindle speed series | - | 22 | 22 | 22 | 24 | 24 |
Spindle speed range | r/min | 8-1000 | 8-1000 | 8-1000 | 4-800 | 4-800 |
Main Motor Power | KW | 7.5 | 7.5 | 7.5 | 15 | 15 |
FACING PLATE | ||||||
Max torque for facing head | N.m | 1960 | 1960 | 1960 | 4900 | 4900 |
Facing head diameter | mm | Φ600 | Φ600 | Φ600 | Φ750 | Φ750 |
Facing head speed range | r/min | 4-200 | 4-200 | 4-200 | 2.5-125 | 2.5-125 |
Facing head speed Series | - | 18 | 18 | 18 | 18 | |
WORKTABLE | ||||||
Worktable size | mm | 1100*960 | 1100*960 | 1250*1100 | 1600*1400 | 1800*1600 |
Max worktable load | Kg | 2500 | 2500 | 2500 | 8000 | 10000 |
T-Slot Size | mm | 22 | 22 | 22 | 28 | 28 |
T-Slot No. | - | 7 | 7 | 7 | 9 | 11 |
WOTKING DIMENSION | ||||||
900 | 1250 | 1600 | 1600 | 2000 | ||
Y-Axis Travel | mm | 900 | 900 | 1200 | 1400 | 1800 |
Z-Axis Travel | mm | 1400 | 1400 | 1400 | 2000 | 2000 |
W-Axis Travel | mm | 600 | 600 | 900 | ||
U-Axis Travel | mm | 1800 | 180 | 180 | 250 | 250 |
B-Axis Travel | ° | 360 | 360 | 360 | 360 | 360 |
DIMENSION | ||||||
Machine Size | mm | 4910*2454*2750 | 4930*2870*2750 | 5028*3359*3079 | 6695*3647*3442 | 7030*4665*3800 |
Machine Weight | kg | 11500 | 12000 | 14000 | 24000 | 28000 |
ACCESSORIES | ||||||
Facing Plate | Standard Accessory | |||||
X/Y-Axis DRO | Standard Accessory | |||||
Z-Axis DRO | ||||||
ISO50 7:24 | Optional Accessory | |||||
Rear Column | Optional Accessory | |||||
B-Axis DRO | Optional Accessory | |||||
