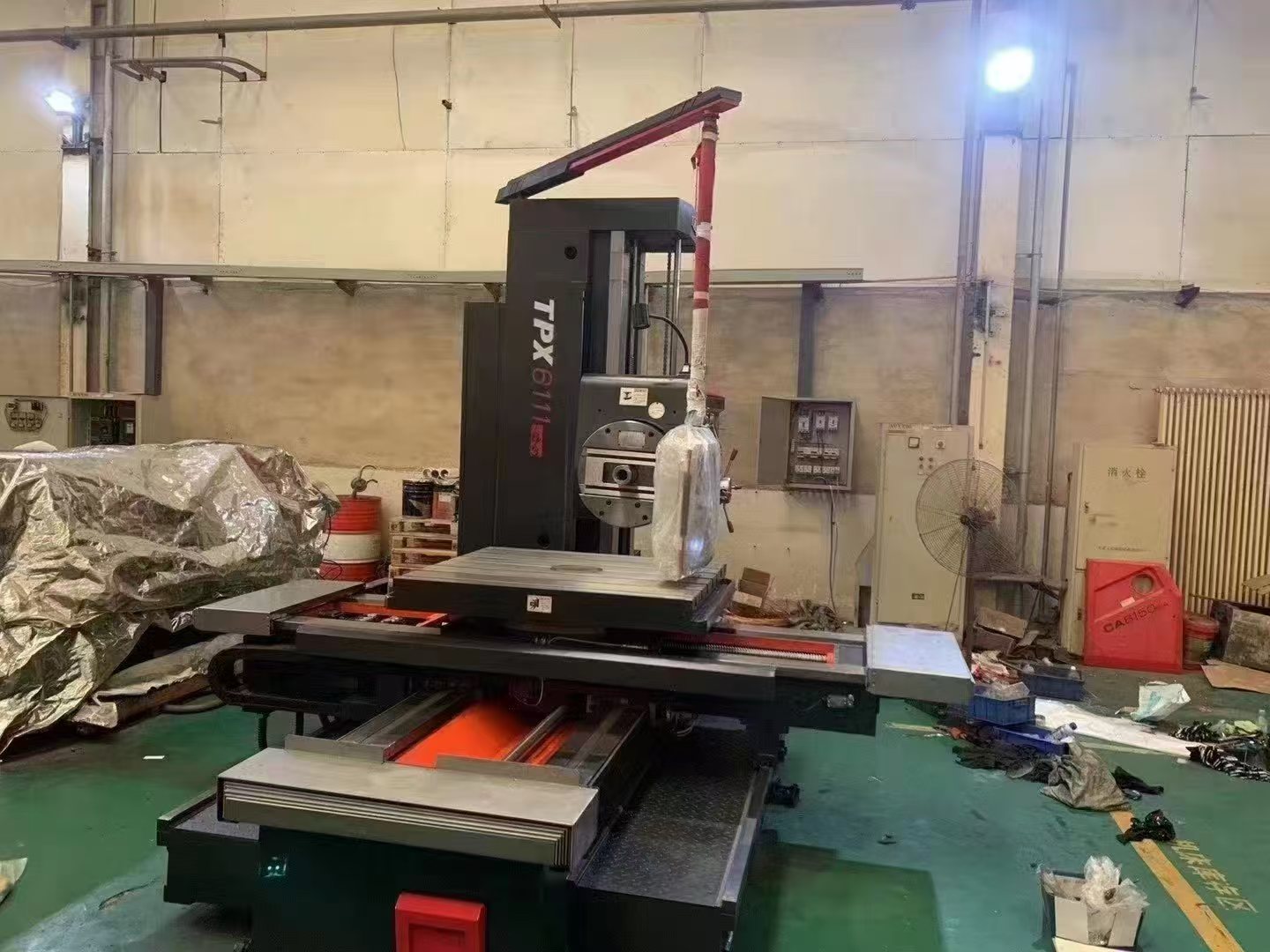

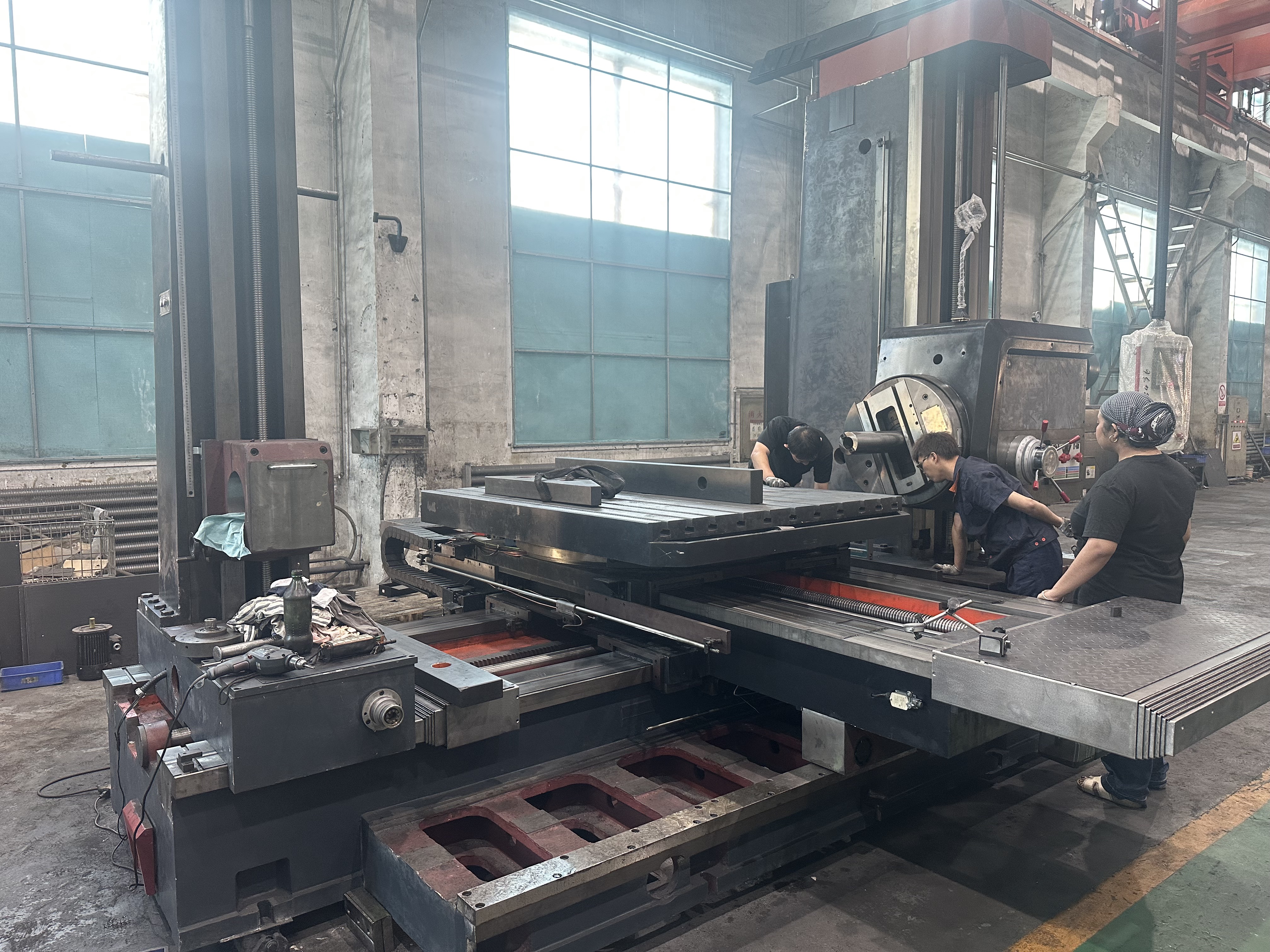

Horizontal boring and milling machine for Metal TPX6113/2

Availability:

Quantity:



Inquire Add to Basket

Model:
TPX6113/2
Brand:
REFINE
Code:
8459310000

Product Description

Product Parameters

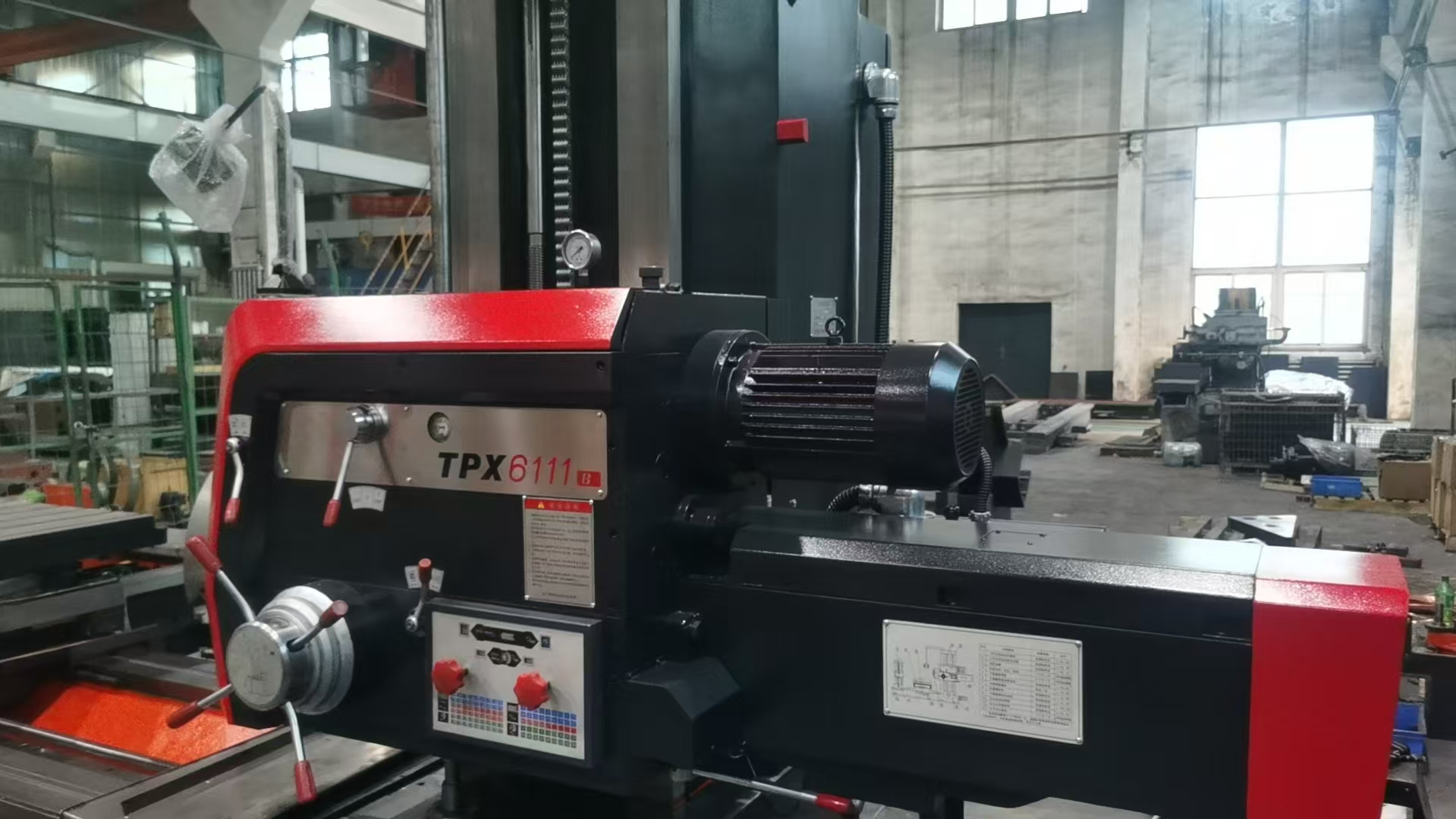

Machine Picture

Details Picture

Package Information

MAIN PROPERTIES AND FEATURES

Simple structure in linear type ,easy in installation and maintation.
Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
High pressure double crank to control the die opening and closing.
Running in a high automatization and intellectualization,no pollution
Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Product Parameters

ITEM		UNIT	TPX6113/2
Spindle diameter		mm	Φ130
Max spindle torque		Nm	3136
Max torque for facing head		Nm	4900
Max. axial force of spindle		N	31360
Spindle taper			Metric 80
Worktable crosswise travel—X Axis		mm	2000
Spindle box travel—Y Axis		mm	1800
Worktable Lengthways travel—Z Axis		mm	2000
Distance between spindle center line and working surface--Max		mm	1800
Distance between spindle center line and working surface--Min		mm	0
W Axis Travel (Spindle travel)		mm	900
Max stroke of radial tool rest of facing plate		mm	250
Max worktable load		kg	10000
Spindle speed series			24
Spindle speed range		r/min	4-800
Facing head speed range		r/min	2.5-125
Worktable size		mm	1800*16600
Spindle, headstock, table vertical and horizontal fast movement speed		mm/min	2500
Quick turning speed of table		rpm	1.2
Spindle per revolution, spindle, headstock, worktable feed level		Series	18
Facing plate per revolution, Facing plate sliding block, spindle box, worktable feed level		Series	18
Facing head speed range		r/min	2.5-125
Facing plate per revolution, Facing plate sliding block, spindle box, worktable feed range		mm	0.08-12.5
Spindle per revolution, spindle box, worktable feed range	Spindle at 4-200r/min	mm	0.05-8
	Spindle at 250-800r/min	mm	0.01-2
Measuring system reading accuracy		mm	0.005
Boring Hole accuracy			IT7
Boring surface roughness		μ	3.2-1.6
Boring diameter Original position of boring tool tip from spindle		mm	φ50-φ350
		mm	<=600
Max boring diameter of facing plate		mm	φ800
Max turning diameter of facing plate		mm	φ860
Machine Size		mm	703046653800
Machine Weight		kg	30000
Total electrical capacity		KVA	25
Voltage			3 Phase 380V 50HZ

ACCESSORIES
Facing Plate	Standard Accessory
X/Y-Axis DRO	Standard Accessory
Z-Axis DRO	Optional Accessory
ISO50 7:24	Optional Accessory
Rear Column	Optional Accessory
B-Axis DRO	Optional Accessory

Introduction

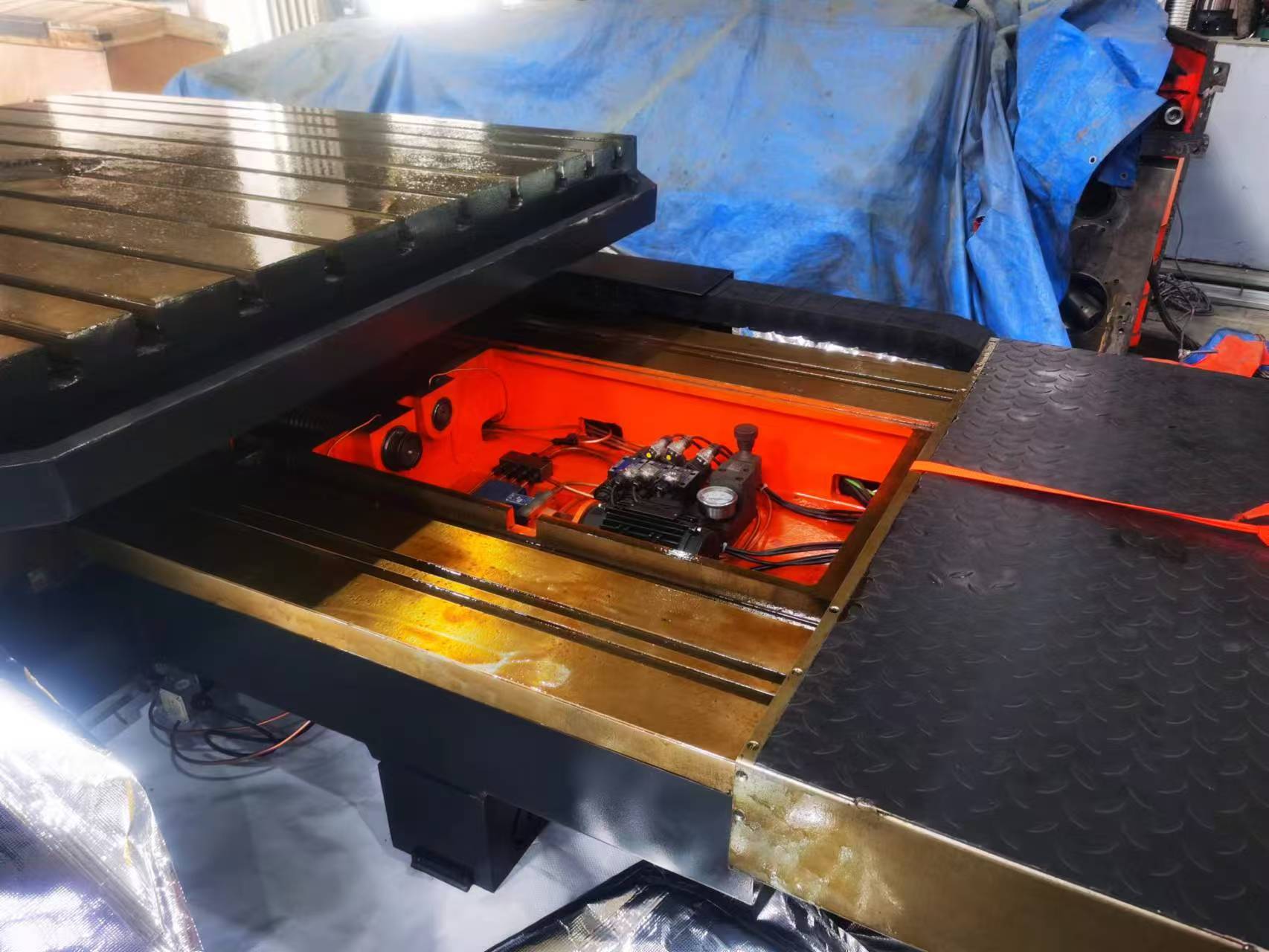

Guide Rail

X/Y/Z direction bed guide rail adopts rectangular guide rail, and the overall quenching combination grinding, its surface hardness can reach hrc48-51, smooth movement, good wear resistance, high positioning accuracy.
Headstock

The headstock gear comes from SMTCL. At the same time, the bearings are selected from domestic high-quality suppliers, and imported bearings can also be selected. The headstock is the core component of the machine. We will provide customers with the best configuration to satisfy customers.

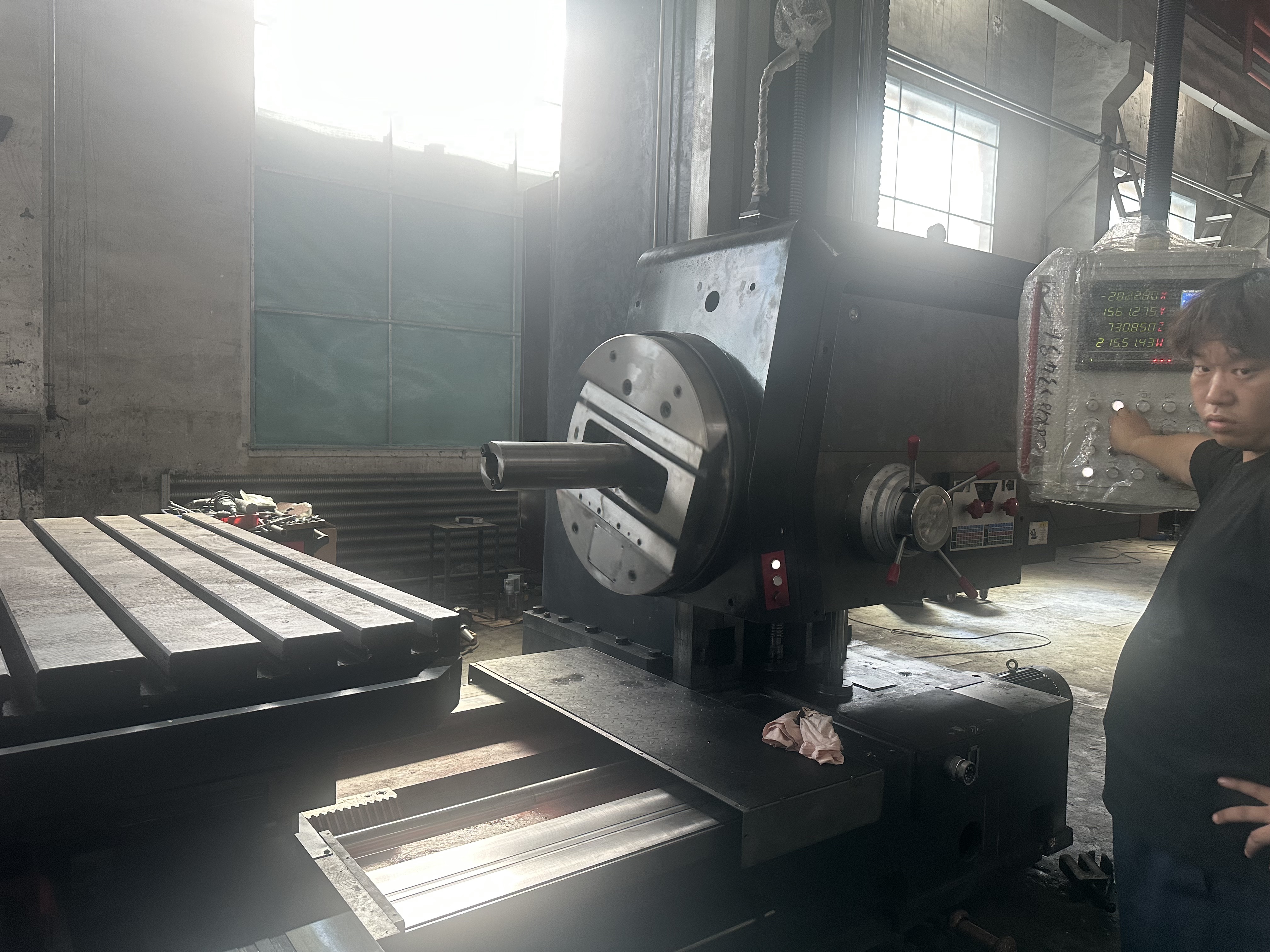

Facing Plate

Horizontal boring and milling machine equipped with the facing plate belongs to the extended processing performance, Suitable for plane milling and hole processing of box parts, and with radial automatic cutting function, expandable plate type workpiece
turning function, improve the processing performance and efficiency.
