TK6920
REFINE
8459310000
|
Product Description
1）The column is a large section of double wall design, both vertical and vertical are covered with reinforcing bars, with sufficient bending and torsional strength.
2）The movement of X axis adopts static guide rail, which has high static stiffness, improves the rigidity of the guide rail and extends the service life of the guide rail. The moving guide surface is inlaid with zinc base alloy plate, which can protect the guide rail of the machine tool.
3）The main shaft shafting adopts a two-layer structure that is hollow main shaft and boring shaft. The structure accuracy and rigidity are good.
ITEMS | UNIT | TK6920 |
Boring Spindle Diameter | mm | Ø200mm |
Milling shaft end diameter | mm | Ø320mm |
Boring Spindle Taper | mm | ISO 60 |
Install the Cutter handle model | JT60 | |
Blind rivet | mm | D60 DIN69872 |
Maximum feed resistance of boring shaft | N | 55000 |
Boring shaft speed range | r/min | 2~1200 |
Maximum torque of boring shaft | N.m | 12000 |
Boring shaft axial travel | mm | 1200 |
Boring shaft feed speed range | mm/min | 0.5~4500 |
RAM (Z-Axis) | ||
Section Dimension | mm | 480*520 |
Axial travel | mm | 1200 |
Feeding Speed Range | mm/min | 0.5~4500 |
Fast Moving Speed | mm/min | 6000 |
Z and W axis superimposed travel | mm | 2400 |
Spindle Box (Y-Axis) | ||
Vertical travel of Spindle Box | mm | 4000 |
Feed range (stepless) | mm/min | 1~6000 |
Fast Moving Speed | mm/min | 8000 |
Column (X-Axis) | ||
Column Travel | mm | 8000 |
Feed range (stepless) | mm/min | 1~6000 |
Fast Moving Speed | mm/min | 8000 |
Electrical | ||
CNC Control shaft | 6-Feeding axes | |
Universal driving shaft | 4 axes (any) | |
Mian Motor Power | Kw | 74 |
Machine Weight | kg | 95000 |
|

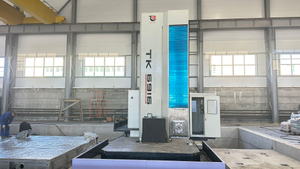

Product Pictures
|
