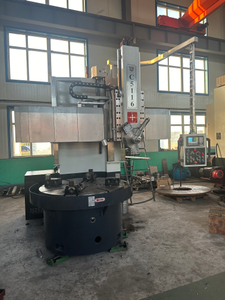

C51 series is a professional product designed according to the needs of motor, valve, pump, bearing, automobile and other indus- tries. This machine is suitable for high-speed steel and carbide tools, focusing on roughing and finishing of inner and outer cylindrical surface, end face and grooving of ferrous metal, non-ferrous metal and some non-metal parts.
Features
Easy to operate due to simple structure and convenient maintenance.
By manipulating the handle and the buttons of the hanging button station for turning work.
Product Advantages
Worktable: The base adopts vibration absorbing structure design, and adopts radial type and ring type reinforcement. The layout is optimized reasonably, so that the base has high strength, stiffness and shock resistance.
Bed: The bed is made of high strength and low stress cast iron, which is treated by heat aging stress removal annealing, and effective vibration reduction measures are adopted to make the bed strong enough.
Beam:The beam has hydraulic locking mechanism.
Beam lifting is equipped with mechanical limit and electrical soft limit double limit, safe and reliable.
Hydraulic System: Hydraulic system includes: workbench hydraulic system, main transmission system, beam clamping system, etc.
Product Parameters
Specification | Unit | C5110 | C5112 | C5116 | C5120 | C5123 | C5126 |
Max dia | mm | 1000 | 1250 | 1600 | 2000 | 2300 | 2600 |
Table dia | mm | 900 | 1000 | 1400 | 1800 | 2000 | 2300 |
Max workpiece height | mm | 800 | 1000 | 1000/1200 | 1200 | 1200 | 1350 |
Max workpiece weight | t | 2 | 3.5 | 5 | 8 | 8 | 10 |
Max torque of table | KN.m | 20 | 25 | 30 | 40 | 40 | 45 |
Table rotate speed range(16 step) | r/min | 8-250 | 6.2-200 | 5-160 | 3.2-100 | 3.2-80 | 2.5-63 |
Max cutting force of the vertical holder | KN | 18 | 18 | 22 | 22 | 22 | 22 |
Vertical toolholder move limi | degree | ±30° | ±30° | ±30° | ±30° | ±30° | ±30° |
Tool rest feed range | mm/min | 0.8-86 | 0.8-86 | 0.8-86 | 0.8-86 | 0.8-86 | 0.8-86 |
Tool rest feed level（Twelve levels) | Grade | 12 | 12 | 12 | 12 | 12 | 12 |
Horizontal travel of rail head | mm | 670 | 700 | 915 | 1050 | 1250 | 1450 |
Ram travel of rail head | mm | 650 | 650 | 800 | 800 | 800 | 800 |
Crossbeam travel | mm | 650 | 650 | 850 | 900 | 900 | 950 |
