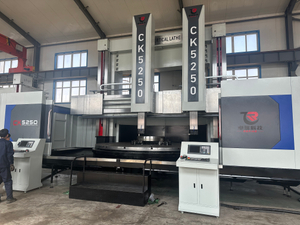

CK52

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Advantages

Product Parameters

CK52 series can turn internal and external cylinders, internal and external cones, planes, grooves, threads and various rotating surface bodies, whose spindle is equipped with encoders that provide functions of constant linear speed cutting and thread turning. The CNC tool holder positioning accuracy is 0.02/1000mm and repeat positioning accuracy is 0.02/1000mm,which can meet the needs of heavy load, strong cutting and high precision.

Features

Left tool holder is controlled by DVT system for rough machining of workpiece, and the right tool holder is controlled by CNC system for finishing machining of workpiece.
Customers can also use CNC system to control both tool holders according to their needs. The CNC systems of SIEMENS, FANUC OiTF, Guang- zhou CNC, Huazhong CNC and other domestic and foreign CNC systems are available.
Square ram structure (300 X300mm RAM section) ;
Stepless speed change for the second gear;
Main Motor 90KW servo motor;
Beam protection;
Hydraulic station, multi-head pump.

Product Advantages

Table: There is a double-row radial cylindrical roller bearing on the spindle of the worktable.
Beam: Beam of high-strength cast iron low stress, aging treatment, steady structure deformation, through its rail IF quenching, has sufficient rigidity and strength to ensure the accuracy of machine tools.
Turning Turret: The left tool holder is controlled by DVT system, the right tool holder is controlled by FANUC OITF numerical control system, and is composed of beam slide seat, RAM, balance cylinder, ball screw and planet reducer.
Hydraulic Station: a table static system, the main drive transmission system, beam clamping system, the vertical turret ram hydraulic balancing system.
Electrical System: System control elements and motor drive units are installed in an independent distribution cabinet, all the operating elements are centralized on the floor cabinet button station.

Product Parameters

Specification		Unit	CK5225	CK5231	CK5240Q	CK5240	CK5250Q	CK5250	CK5263	CK5280Q
Max workpiece dia		mm	2500	3150	4000	4000	5000	5000	6300	8000
Table dia		mm	2250	2830	2830/3150	3200/3600	4500	4500	5700	7200
Max workpiece height		mm	1600/2000/ 2500	1600/2000/ 2500	1600/2000/ 2500	1600/2000/ 2500	2000/2500/ 3150	2000/3150	3150	2500/3150/ 4000
Max workpiece weight		t	10/15/20	10/15/20	15/20	32	40	65	80	100
Max torque of table		KN.m	63	63	63	80	80	100	250	400
Table rotate speed range(16 step)	4 gear or 2 gears stepless	r/min	0.5-60	0.5-60	0.5-60	1-50	1-45	0.42-42	0.42-32	0.16-16
Table rotate speed range(16 step)	16 grade	r/min	2-63	2-63	2-63	2-63	0.42-45	0.42-42	0.42-32	0.16-16
Max cutting force of the vertical holder		KN	32	35	35	40	40	50	70	100
Vertical toolholder move limit		degree	±30°	±30°	±30°	±30°	±30°	±30°	±30°	±30°
Tool rest feed range		mm/min	0.1-500	0.1-500	0.1-500	0.1-500	0.1-500	0.1-500	0.1-500	0.1-500
Tool rest feed level(ungraded)		grade	stepless	stepless	stepless	stepless	stepless	stepless	stepless	stepless
Horizontal travel of rail head		mm	1400	1725	2150	2150	2765	2765	3400	4400
Ram travel of rail head		mm	1000	1000/1250	1000/1250	1000/1250	1250/1600	1250/1600	1600/2000	1250/2000/ 2250
Crossbeam travel		mm	1250	1250	1250	1250	2000	2000	2150	2800
Fast moving speed of tool heads		mm/min	3500	3500	3500	3500	3500	3500	3500	4000
Knife rod cross-section size (W.D.)		mm/min	40×50	40×50	40×50	40×50	50×50	50×50	50×50	60×60
